Belt conveyor

mesh beltspiralcooling

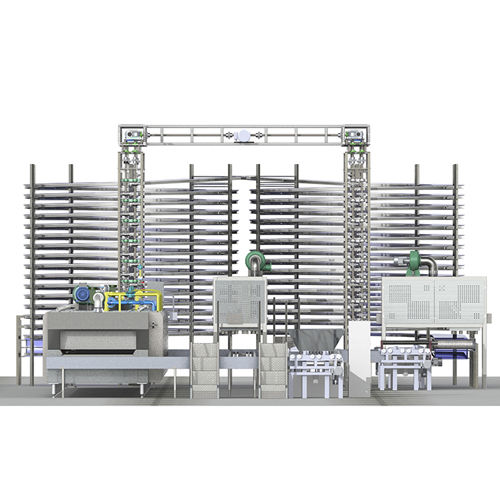

Spiral cooling towers are equipped with best frequency changer, high-quality reduction box, and Schneider Electric components. The Conveyor belt is made of stainless steel and the skeleton is made of stainless steel square tubes. Spiral Cooling Tower - The mesh belt is made of 304 stainless steel and the skeleton is made of 304 and 201 stainless steel square tubes. Belt width range 200 mm-1300 mm Belt length range Single tower length 50 meters - 1200 meters Tower diameter range 1.5-12 Meters Layer height Spiral tower up to 6 meters Tower Layer range 1-40 layers Entrance&exit direction Low inlet high exit high inlet low exit two in and two out, three in and three out, ellipse Spiral Cooling Tower Conveyor Tip: Spiral Cooling Tower Conveyor can be customized according to your needs 1. The production capacity,cooling time and the size of the food you make 2. Material,length and width of the conveyor belt. 3. The height,diameter and layers quantity of the tower. 4. In feed and out feed direction. 5. Shape of the tower(round,oval,vertical) 6. Material of the frame 7. The brand of the reduction motor,bearing ,and the inverter frequency device and screen.
