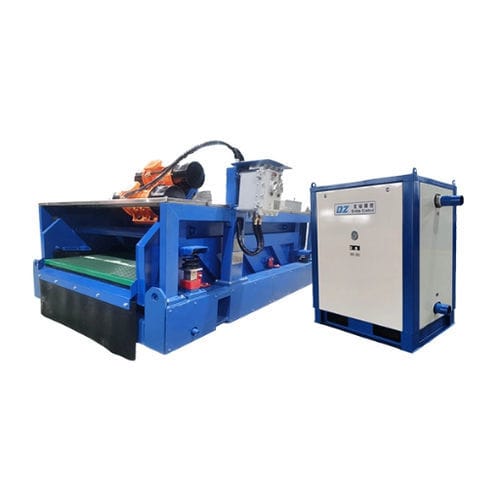

Drying unit FBZS series

vacuum drying shale shaker is separating device combined with vacuum suction system. By installing a suction pan under the last screen at the discharge end of the shaker vacuum, the pan connecting to the vacuum pump by hose, a negative pressure pulsating suction is generated to pull additional fluid out of the cuttings as cuttings flow towards the discharge end, generating significantly drier cuttings. The suction frequence of vacuum pump is adjustable to match the mud situation in real-time. BZ adopts unique back blowing technology, reduce the last screen been blocked by long-time suction. BZ vacuum drying shale shaker solid control equipment can reduce the fluid on the cuttings by an additional 30-50%, increase the amount of drilling fluid recovery, reduce the cost of secondary fluid distribution, reduce the waste quantity and disposal cost, improve the drilling efficiency and reduce the operating cost. You can get cheapest vacuum drying shale shaker, cheapest high g shale shaker and other solids control products at BZ factory. Vacuum Drying Shale Shaker Features&Benefits Compact solid control equipment design for offshore, onshore applications Compatible with OBM, WBM and SBM The suction frequency is adjustable The suction system is fully pneumatic and requires no additional power Blowback technology to reduce final screen clogging Make it possible to use higher mesh screen without fliuds loss. Vaccum suction system can be installed on the customer's existing shale shaker without changing the original design. Maximizes drilling fluid recovery Reduces overall waste discharge Decreases waste transportation and disposal costs
