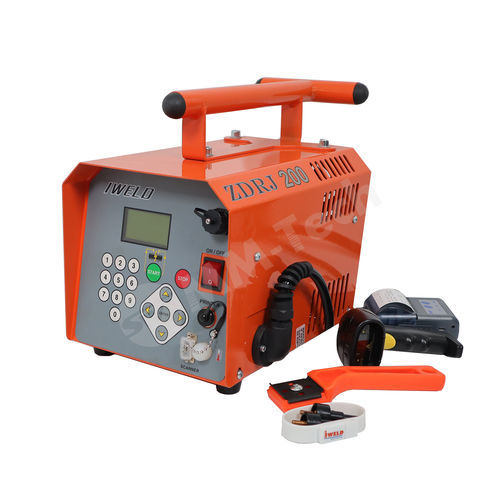

Polymer electric fusion machine ZDRJ-200

for industrial applications

The ZDRJ-200 is a portable electrofusion welding machine engineered for reliable, traceable fusion of thermoplastic pipes (PE/PP/PPR) in the 20–160 mm range. It integrates barcode-guided welding, automatic temperature compensation and data-logging to support consistent on-site welds.

Key features

• Fusion operation modes: barcode scanning, manual barcode input, or manual entry of pressure/tension and fusion time.
• Automatic temperature compensation adjusts welding parameters according to ambient conditions.
• Intelligent barcode scanner compatible with most domestic and international pipe manufacturer barcodes for guided welding.
• On-site data handling: welding records exportable via USB and printable on-site for traceability.
• Universal connector (4.0–4.7 mm) and error-detection functions to ensure reliable joints.
• Internal memory for up to 4,000 welding cycles.

Applications

• Water supply and wastewater systems.
• Gas distribution networks.
• Building heating systems and HVAC piping.
• Agricultural irrigation and other thermoplastic pipe installations.

Technical specifications

• Model: ZDRJ-200
• Welding (pipe) range: 20–160 mm
• Compatible materials: PE, PP, PPR
• Dimensions (L×W×H): 358 × 285 × 302 mm
• Weight: 17.5 kg
• Rated voltage: 220 VAC, 50/60 Hz
• Rated power: 2000 W
• Operating temperature: -10 ℃ to 40 ℃
• Output voltage: 8–44 V
• Maximum output current: 80 A
• Protection degree: IP54
• Connectors: 4.7 mm / 4.0 mm (universal 4–4.7 mm connector)
• Memory / data logging: 4,000 welding cycles (data export via USB; printable on-site)
• Warranty: 2-year quality warranty (as stated on the product page)
