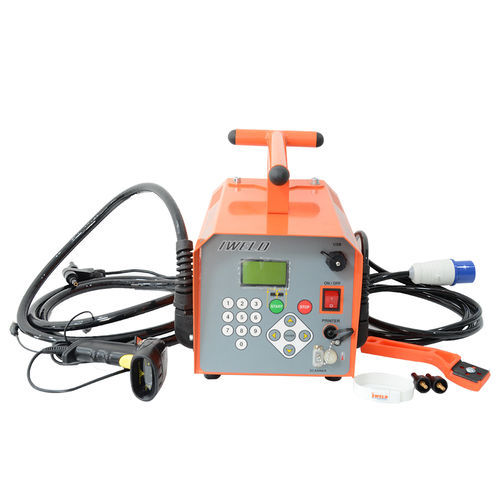

Polymer electric fusion machine ZDRJ-400

for industrial applications

The ZDRJ-400 is an electrofusion welding machine for thermoplastic pipes (PE, PP, PPR) covering a welding range of 20–400 mm. It supports barcode-driven and manual welding modes, automatic temperature compensation and onboard data storage for quality traceability. Suited to water, gas, heating and irrigation pipeline installations.

Key features

• Fusion by barcode reading, manual barcode entry or manual input of voltage and fusion time.
• Automatic temperature compensation according to ambient conditions.
• Smart scanning gun compatible with barcode formats from most pipe manufacturers (domestic and international).
• On-board memory for 4000 welding cycles; welding data exported via USB or printed on site.
• Universal RF connectors (4.7 / 4.0 mm) for various electrodes and leads.
• IP54 protection rating and error-detection controls for repeatable, documented welds.

Applications

• Drinking water supply and distribution systems
• Gas pipelines and distribution networks
• Building heating systems
• Agricultural irrigation and drainage projects
• Industrial and civil piping installations using thermoplastic materials

Technical specifications

• Model: ZDRJ-400
• Welding range: 20–400 mm
• Material compatibility: PE, PP, PPR
• Dimensions (mm): 358 × 285 × 302
• Weight: 23 kg
• Rated voltage: 220 VAC, 50/60 Hz
• Rated power: 3500 W
• Operating temperature: -10 °C to 40 °C
• Output voltage: 8–44 V
• Maximum output current: 80 A
• Protection degree: IP54
• Connectors: 4.7 / 4.0 mm
• On-board memory capacity: 4000 welding cycles
