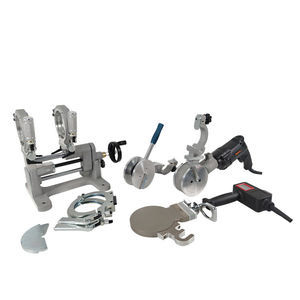

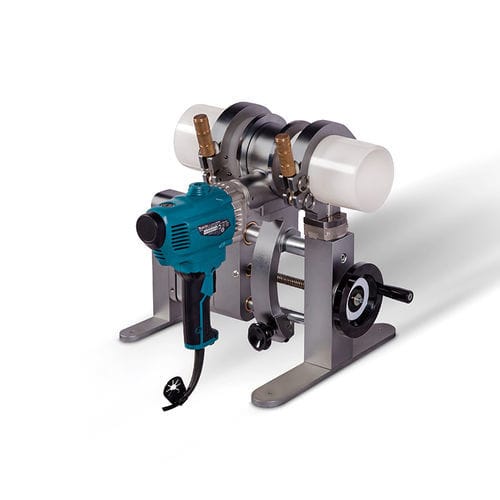

Polymer electric fusion machine FUSENANO 110

for industrial applications

FUSENANO 110 is a compact suspending butt‑fusion welding machine designed for on-site and workshop joining of thermoplastic pipes and fittings. Its suspended-capable design allows safe, space-saving operation in constrained or overhead working conditions.

Key features

• Compatible with PE, PP and PVDF pipes and fittings across all pressure classes within the welding range.
• Chassis with horizontally adjustable clamps for precise pipe positioning on both sides before welding — useful for segmented bend fabrication.
• Upper and lower clamps and single‑layer reducing inserts secured by locking pins for quick, reliable assembly and adjustment when suspended.
• Rotating clamps lockable from 0° to 15° per side to perform butt and miter welds, enabling bends up to 30°.
• PTFE‑coated heating plate with electronic temperature control and horizontal adjustability for consistent, reproducible heating.
• Includes a Makita‑driven trimmer with horizontal adjustment and double‑edged blades for durable trimming and simplified maintenance.
• Optimized for portable handling: compact footprint, dependable setup and professional pipe‑welding workflow.
• Two‑year product warranty and technical support.

Technical specifications

• Model: FUSENANO 110
• Welding range (O.D.): 20 mm – 110 mm (1/2" IPS – 3" DIPS)
• Inserts type: Single‑layer, locked by pin
• System pressure: 900 N
• Power supply: 220 V, 50/60 Hz
• Rated power: 1850 W
• Overall weight: 25 kg (excluding inserts)
