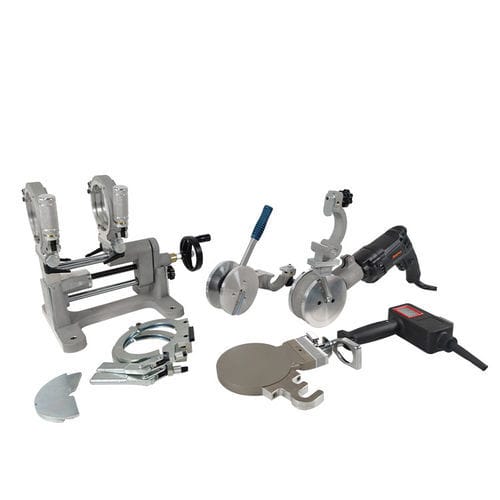

Polymer electric fusion machine SBT-110

for industrial applications

The SBT-110 is a suspended butt fusion welding machine designed for precision thermoplastic pipe welding in semiconductor manufacturing and other high‑precision industrial environments. Its suspended configuration and compact, portable design facilitate installation and welding in elevated or confined locations.

Key features

• High-precision butt fusion welding for O.D. range 20–110 mm
• Suspended design to enable work at height and in restricted spaces
• Portable, user-friendly operation for on-site use
• Reducer inserts included to accommodate multiple pipe diameters

Applications

• Semiconductor manufacturing
• Electronics production
• Chemical processing
• Plating tanks and coating systems
• Scrubber and gas treatment systems

Characteristics / technical specifications

• Model: SBT-110
• Operating range (O.D.), mm: 20 - 110
• Power supply: 230 V / 110 V, 50/60 Hz
• Rated power, W (heating element / facing tool): 1200 W
• Overall weight: 32 Kg
• Reducer inserts included: 20, 25, 32, 40, 50, 63, 75, 90
• Warranty: 2 years (quality and technical support)
