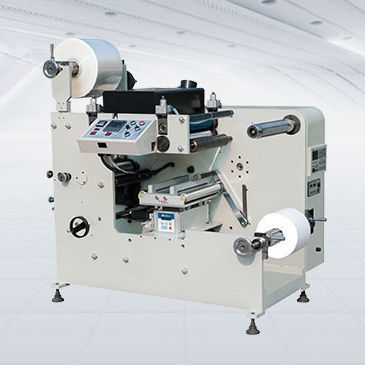

Paper coating machine WJRS-350

This machine is generally used for one color roll paper flexo printing (70-250 gsm) and self-adhesive paper coating (solid printing). It has functions of IR drying and re-winding. The main motor is driven by converter with auto tension control for unwinding and rewinding. It has a compact structure with easy operation, no- air pollution. If UV unit and film lamination device are equipped with the machine it can do UV glue film lamination and UV vanishing. Optional functions: UV lamination device , UV vanishing, cold foil stamping and web-guide for unwinding. Max. web width: 350mm Printing speed: 15-60m/min Max. Unwinding Dia.: 500mm Max. Rewinding Dia.: 500mm Printing length: 178-340mm Printing color: 1Color Main power: 1.5KW Overall dimensions (L*W*H): 1500*1100*1300mm Weight: 1000Kg
