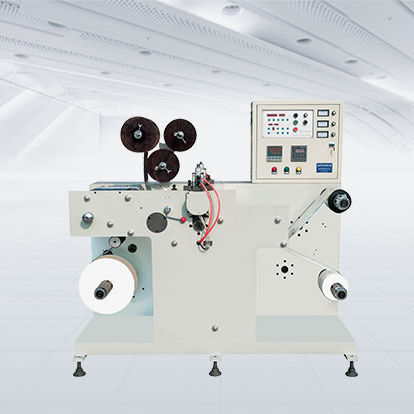

Hot foil stamping machine WJTJ-350

WJTJ-350 Rotary Hot Stamping machine adopts rotary hot-stamping mode which is mainly used for solid foil hot-stamping and hot transfer of foil stamping. The machine uses Hohe IR with the feature of high heat efficiency, high strength, high penetration and lower energy consumption. It overcomes the defaults of no vacuuming, big thermal inertia, low precision on temperature control, low heat transfer efficiency and low life span for ordinary heating tube and milky quartz heating tube. Equipped with thyristor smart power regulator and heat-conducting oil as transfer medium, it has the feature of fast heat transfer, even and consistent temperature on the surface of the roller. It has the function of auto web-guide at rewinder, auto meter counting and auto-stop at the end of counting. Max. web width: 350mm Max. unwind. diameter of foil: 200mm Max.No.of the roll: 3roll Max. stamping speed: 25m/min Max. unwinding diameter: 500mm Max. rewinding diameter: 500mm Overall dimensions: 1600*1000*1500mm Weight: 800KG
