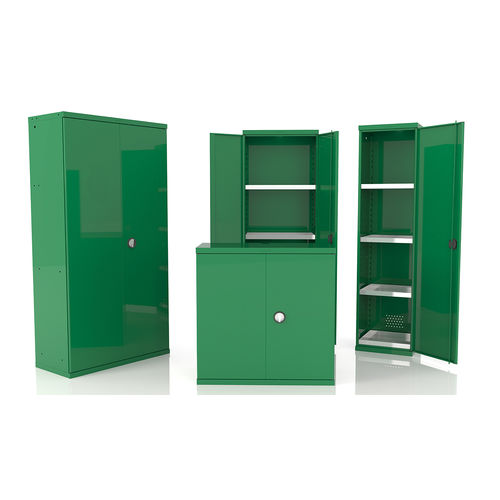

Workshop cabinet 161 series
floor-mountedhinged doordouble-door

workshop cabinet
workshop cabinet
workshop cabinet
workshop cabinet
workshop cabinet
workshop cabinet
workshop cabinet
workshop cabinet
workshop cabinet
workshop cabinet
Add to favorites
Compare this product


Characteristics

Type
workshop
Mounting
floor-mounted
Construction
hinged door, double-door, shelf, single-door
Material
metal
Product applications
for chemical products
Other characteristics
ventilated, robust
Width

500 mm, 700 mm, 1,000 mm (20 in)

Height

1,000 mm, 1,980 mm (39 in)

Depth

490 mm (19 in)

Description

Phytosanitary cabinet with 3 adjustable trays and 1 liquid collecting tray. 1mm thick sheet metal structure. Painted in green RAL 6029, kiln dried before degreasing and phosphating. The structure allows the installation of plates adjustable in height every 25mm for the installation of phytosanitary containers. Adjustable shelves made of 2 mm thick electrogalvanised sheet metal. Collector plate made of 3 mm thick electrogalvanised sheet according to STAWA-R standard. The four edges of the trays are welded to make each tray waterproof. Sheet metal doors 0.6mm thick. The shape of the side edges of the door folded from the same sheet gives it rigidity without the need to weld reinforcements. The rounded door allows an opening of more than 180º. NOT SUITABLE FOR FLAMMABLE AND EXPLOSIVE PRODUCTS

Catalogs

No catalogs are available for this product.

See all of HECO‘s catalogs
