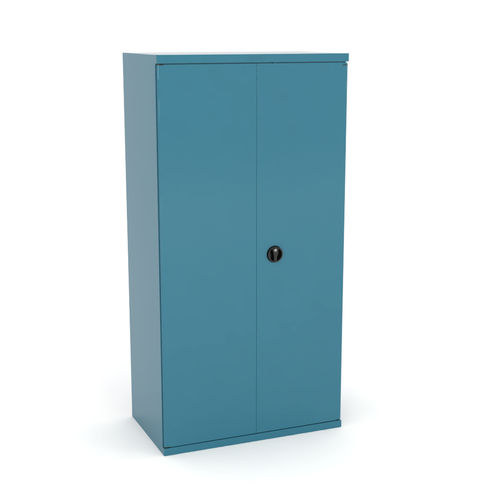

Storage cabinet 159 F6 series

floor-mounteddouble-door

Door cabinet (metal curtain option) with shelves and/or drawers, perforated panel, ISO40 or ISO50 cone shelf, central divider, spout bins. High-quality 2-point lock. Structure in 1mm thick sheet metal, all welded by resistance painted in hammered blue colour, dried in the oven before degreasing and phosphating. 1mm thick sheet metal shelves that support a distributed weight of 100Kg. Shelves adjustable every 25mm. 1mm thick sheet metal drawers that support a distributed weight of 50Kg. Telescopic slides of 50Kg. (full opening). Sheet metal door 0.6mm thick. The shape of the side edges of the door folded from the same sheet gives it rigidity without the need to weld reinforcements. The rounded door allows an opening of more than 180º. Optional sheet metal curtain 0.6mm thick. Plastic handle embedded in the metal profile. The curtain is mounted on the cabinet structure by means of a spring system which compensates the rise and fall of the cabinet.
