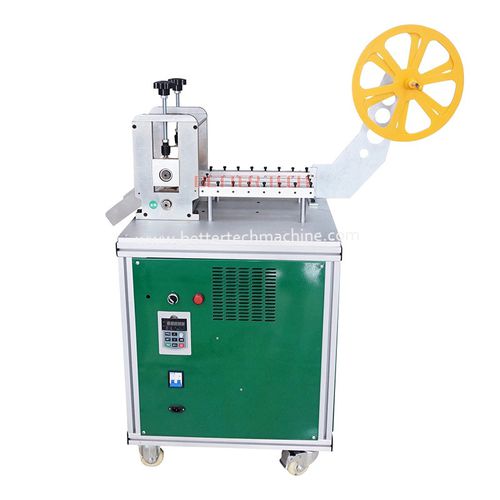

Ultrasonic cutting machine ZCUT- G1160

for plasticsstrapsheet

This Ultrasonic Cutting Machine equips dies on roller, that can cut special-shaped plastic card, PVC/ PE sheet, velcro and other webbings into customized shapes. The dies can be changed as your requirements. • Computer control, stable performance, can cut a variety of special-shaped, high efficiency, cutting shape. • LCD display, 0-6 seconds intelligent delay counter, can cut thin, thick or elastic fabric smoothly. When power is off, the counter stores data. • This ultrasonic cutting machine is able to change cutting mould easily and by loosening screws. • The humanized design of the pressure rod makes the material feeding more stable. • High hardness titanium alloy mold can be customized according to the needs of various cutting shapes. The middle part is the shape engraving area and the two ends are shoulders to protect the mold from wear. • Cut length : 1-99,999(mm) • Max. cutting width : 160 mm • Cut thickness : less than 5mm • Knife mold diameter : 50-180mm • Running speed : 300-500 pcs/min • Rating power : 1.5KW
