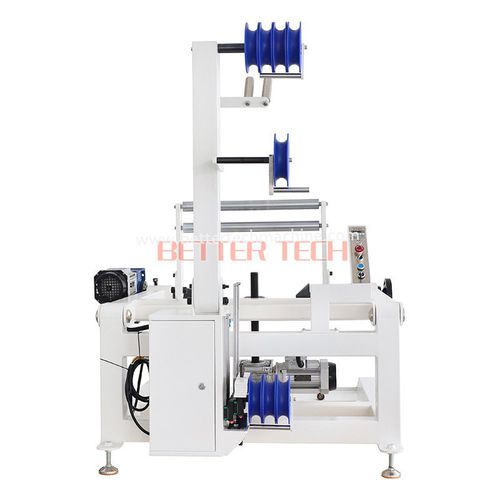

Wire coil wire feeder JWD-A1F812

for weldingcableautomatic

Wire feeding system is good partner of wire cutter and wire stripping machine, this pay off system adopts active feeding method that can control the speed. • This wire feeding system adopts frequency converter to realize the actively control pay-off speed, the maximized feeding speed is up to 100 meter per minute and the feeder can load 1500kg cable coil. • JWD-A1F812 is available for wire coils with outer diameters ranging from 100 to 200mm. • Max weight of coil : 1500kg • Coil OD : 300~1200mm • Coil ID : 60~140mm • Coil height : 800mm • R.P.M. max. : 2200 • R.P.M. rate : 1450 • Max dia. : 40mm • Driver : Three-phase motor + reducer • Speed : Adaptive stepless speed regulation • Power : 3000W • Power supply : 220V • Machine weight : 180kg • Dimension : 1850mm×1600mm×1300mm L×W×H
