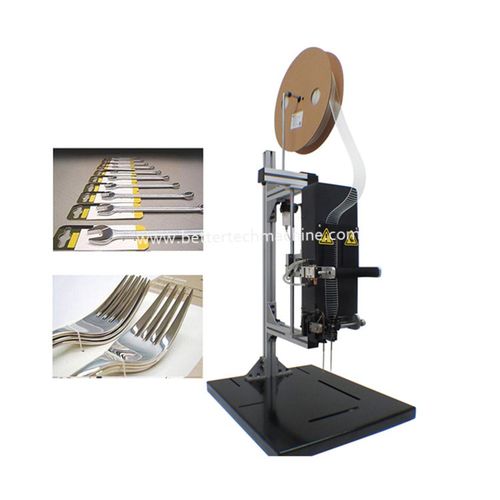

Staple pin attacher JWD-21801M

Elastic staple fasterner machine JWD-11801M uses plastic staple to fixing the goods(forks, toys, dolls, etc) to flat card surfaces, multi-level card packaging materials or boxes. JWD-21801M staple fasterning system saves time and steps in packaging production, It follwed the trends and really replaced traditional manual fasterniing. • The elastic staple system is used to replace the traditional packaging methods such as cable ties, paper ropes and iron wires, which can increase your packaging speed and production • Adjustable needle pitch range: 10-80MM • Effective elastic needle height: 120MM • One binding action only takes 0.5 seconds • The stability and efficiency of this elastic staple fastener machine benefit from the smooth 3D dynamic modeling design and the precision machining of internal movement parts. • Function : Fixing goods to flat card or box by fasterning the elastic staples • Adjustable needle pitch range • 10-80 mm • Standard needle length : 100 mm • Standard length of thimble : 165 mm • The blade configuration : Left/right universal blade • Effective needle length space : 120 mm • Needle diameter : 2.3 mm • The host weight : 3.8 kg • Aluminum frame : 800mm×800mm aluminum frame /80*80 reinforced aluminum frame • Table top : 480mm×600mm painted metal working face • Integral parts processing method : Precision machining • Machine configuration : Main engine head, aluminum frame, black lacquer worktable, reel bracket • Dimension : 950mm×480mm×600mm (H * D * W) • Total weight : 23.5 Kg
