Laser cutting machine JWD-PM01

tubemarkingautomatic

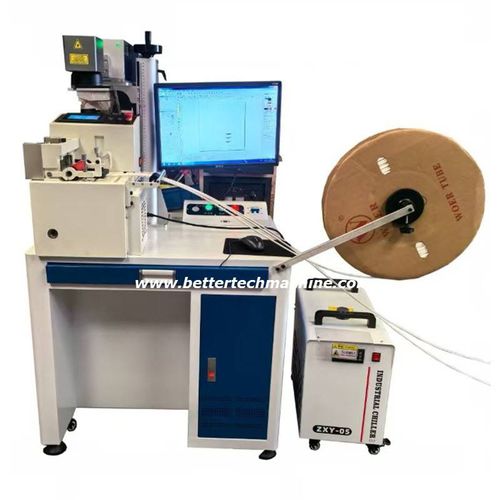

Tube Cutting Machine with Laser Marker Model JWD-PM01 Brand BETTERTECH JWD-PM01 is a real fully automatic tube processing solution, which can repeatedly mark on tube and measuring cutting it. This tube cutting machine with laser marker is suitable for cable tube, hose, mark tube manufacturing companies. Specification Tube Laser Marking and Cutting Machine Technical Parameters Model - JWD-PM01 Function - Tube cutting, Laser marking Cutting speed - 7200pcs/h Cutting width - 1-100mm Cutting length - 0.1mm-99999.99mm Blade power - 90W Power - 330W Power supply - AC 220V 50Hz Dimension - 415*380*410mm Weight - 34kg Laser Machine Technical Parameters Film quality M2 - <0.8mm Engraving range standard - 110*110mm Marking line width - <0.01mm Marking line speed - 0.12mm Minimum character - 0.12mm Marking speed - <10000mm/s Repeat accuracy - ±0.001mm Laser wave length - 355nm Laser power - 3W Volume - 1200/760/1380mm Power - 1.5KW Power supply - 220V 50HZ Weight - 80KG
