Corrosion protection coating Corr series

wear-resistantprotectivehydro-oleophobic

Overview
HEGGEL® Corr is a family of novel, high-performance protective coatings combining organic and inorganic molecular structures to deliver thermal stability, a highly crosslinked impermeable matrix, exceptional chemical resistance and strong mechanical abrasion resistance. The HEGGEL Corr range includes spray-grade, semi-paste and paste grades as well as specialty laminating and sealer systems. Many systems cure at ambient temperature as a single coat (self-priming) and can be applied by airless spray, brush or roller.

Key general properties

• Hybrid organic/inorganic chemistry delivering thermally stable, highly crosslinked coatings
• Solvent-free formulations in many variants; single-coat, self-priming ambient cure in multiple products
• Excellent resistance to concentrated and diluted acids, alkalis and a broad spectrum of chemicals (pH 1–14 in selected grades)
• High fouling resistance and smooth finishes to improve fluid flow and reduce sludge build-up
• Good sliding abrasion resistance and strong adhesion to steel and concrete (varies by product)
• Applicable to moist substrates in selected grades; some products suitable for in-situ application on hot or operational equipment

Product variants and highlights

• HEGGEL Corr 210 – Two-component hybrid epoxy High‑Tech coating. Provides special chemical resistance: immersed -70 °C to +190 °C; non‑immersed up to +250 °C. Solvent‑free, single‑coat ambient cure; cleanable by high‑temperature steam; smooth finish, good sliding abrasion resistance.
• HEGGEL Corr 211 – Two-component hybridised epoxy with exceptional temperature resistance: immersed -50 °C to +170 °C; non‑immersed up to +230 °C. Outstanding mechanical/abrasion resistance and high fouling resistance.
• HEGGEL Corr 212 – Two-component semi paste‑grade hybrid epoxy. Immersed -70 °C to +225 °C; non‑immersed up to +280 °C. Semi paste (and spray) grades available; can withstand steam cleaning above 225 °C; maximum dry film thickness (DFT) options and very high abrasion/impact resistance.
• HEGGEL Corr 214 – Two-component advanced coating for harsh chemicals. Immersed -70 °C to +190 °C; non‑immersed up to +250 °C. Cleanable using high‑temperature steam; very high fouling resistance and single‑coat ambient cure.
• HEGGEL Corr 215 – Two-component coating engineered for ambient aqueous environments, optimized for moist steel and concrete and for seawater service. Provides cavitation and turbulent-flow resistance, high abrasion resistance and superior anti‑fouling performance.
• HEGGEL Corr 216 – Two‑component special composite coating with advanced epoxy resin, offering broad chemical and temperature resistance, excellent abrasion resistance and high adhesion; ambient curing.
• HEGGEL Corr 217 – Nanotechnology polymer coating with specialized fillers for chemical industry equipment; engineered for chemical and thermal resistance, high mechanical strength and outstanding adhesion on steel and concrete.
• HEGGEL Corr 218 – Two-component anti‑corrosion coating with enhanced barrier technology for seawater and turbulent flow resistance; smooth glossy finish and strong durability against particle impact and abrasion.
• HEGGEL Corr 219 – Two-component epoxy interpenetrating-network concrete sealer. Deep-penetrating (into weak/porous concrete to ≥50 mm), increases surface tensile strength by at least a factor of 10, forms flexible impermeable sealing barrier; intended as consolidating/sealing layer prior to compatible topcoats (not for direct chemical exposure without topcoat).
• HEGGEL Corr 220 – Nano-technology system with advanced fillers for ultra-high resistance to aggressive chemicals at elevated temperatures; excellent adhesion to steel and concrete; suitable for large secondary containment areas.
• HEGGEL Corr 220 AF – Variant of Corr 220 with anti‑fouling properties for aggressive chemical exposures and elevated temperatures; prevents fouling and sludge build-up.
• HEGGEL Corr 222 – Two-component laminating resin using high-crosslink interpenetrating polymer network technology. Designed for impregnation of glass reinforcements and deep penetration into porous substrates; compatible with HEGGEL Corr topcoats.
• HEGGEL Corr 225 – Two-component ceramic hybrid epoxy spray grade, self‑priming, rapid cure, very high abrasion resistance, adhesive strength >29 MPa; resists steam at 210 °C and provides resistance to hydrocarbons and H2S/CO2 environments.
• HEGGEL Corr 230 – Advanced ceramic coating with elevated high‑temperature anti‑corrosion performance; not intended for full immersion services. Thin film single coat application with high temperature resistance in high‑temperature environments.
• HEGGEL Corr 233 – One-component high-temperature coating offering intermittent temperature resistance up to +650 °C; exceptional impact/abrasion resistance and resistance to thermal shock; ambient cure with gradual heat‑up to operating temperature.
• HEGGEL Corr 240 – Solvent‑free modified phenolic epoxy for equipment exposed to high‑pressure process fluids and gas mixtures (e.g. separators, down‑hole tubulars). Rapid cure, very high adhesive strength (>4200 psi reported) and resistance to gas permeation and explosive decompression.
• HEGGEL Corr 244 – Solvent‑free modified phenolic cyclic polymer coating for internal protection of pressure/separator vessels and downhole equipment; self‑priming single‑layer system with excellent adhesion, abrasion resistance and resistance to explosive decompression.
• HEGGEL Corr 250 – Ceramic/metal epoxy resurfacing grade for erosion/abrasion; hand‑applied, extremely high sliding abrasion resistance, can be applied to high DFTs (applications reported up to several mm; page notes application up to 15 mm DFT), smooth friction‑reducing finish; not advised for cavitation erosion without specialist recommendation.
• HEGGEL Corr 260 – Two-component ultra‑smooth, hydrophobic coating to improve flow efficiency and resist cavitation, erosion, fouling and sludge build‑up. Self‑priming with strong adhesion to many substrates.
• HEGGEL Corr 270 – Solvent‑free graphite‑modified phenolic lining for ultra‑high chemical resistance, including concentrated organic/mineral acids and concentrated hydrofluoric acid up to elevated temperatures (specific max operating temperatures depend on chemical service). Electrically dissipating; ambient cure.
• HEGGEL Corr 280 – Advanced ceramic coating system with high‑temperature anti‑corrosion capabilities; temperature resistance up to about +250 °C, excellent thermal shock and abrasion resistance.
• HEGGEL Corr 290 – Modified phenolic hybrid lining formulated for conveyance of nitric acid and oxygenating chemicals; ambient curing coating with temperature limits depending on chemical service (usable up to 100 °C and in some acid vapours to higher temps as indicated).

Applications

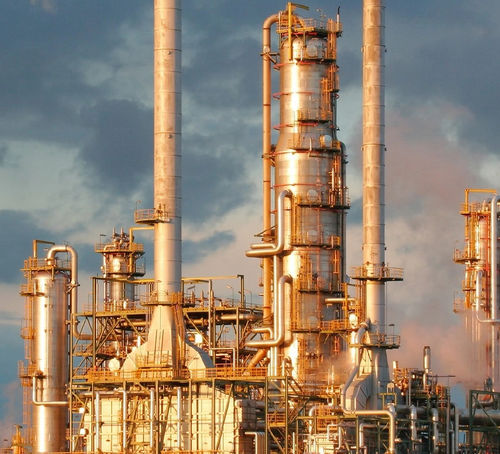

• Internal and external protection of process equipment, separators, vessels and piping
• Secondary containment areas, concrete and metallic substrates
• Seawater and offshore components (selected grades)
• Erosion/abrasion-prone surfaces and high-pressure/high-temperature process equipment
• Areas requiring improved flow, reduced fouling and easier steam cleaning

Caractéristiques / spécifications techniques

• Range comprises multi‑grade systems: spray grade, semi‑paste, paste, laminating resin and deep‑penetrating sealers
• Typical temperature resistances (selective by grade): Corr 210: immersed -70 °C to +190 °C / non‑immersed to +250 °C; Corr 211: -50 °C to +170 °C immersed / +230 °C non‑immersed; Corr 212: -70 °C to +225 °C immersed / +280 °C non‑immersed; Corr 214: -70 °C to +190 °C immersed / +250 °C non‑immersed; Corr 233: intermittent up to +650 °C; Corr 230: up to +550 °C (characteristic for inorganic ceramic grade); Corr 280: up to +250 °C; Corr 270: HF resistance up to +100 °C (application dependent)
• Many products are 100% solids, solvent‑free and cure at ambient temperature as single‑coat systems
• Application methods: airless spray (preferred for many spray grades), brush or roller for paste/sealant or hand‑applied resurfacing grades
• Resistant to Corrosion Under Insulation (CUI) in multiple grades
• High adhesion values on steel/concrete (examples: Corr 225 >29 MPa; Corr 240 reported >4200 psi adhesion)
• Some products cleanable by high‑temperature steam (Corr 210, Corr 214, Corr 212 and others where noted)
• Specialty properties: anti‑fouling variants (220 AF), electrically dissipating variant (270), deep‑penetrating concrete sealer (219), laminating resin (222), erosion/ceramic‑metal resurfacing (250)
• Maximum Dry Film Thickness (DFT): certain grades designed for very high DFTs (e.g. Corr 212 up to multiple thousands of microns in some variants; Corr 250 can be applied to multi‑mm DFT in resurfacing)
