Lining material FRP series

Overview
HEGGEL® FRP are glass fiber reinforced lining systems for application on primed steel and concrete substrates. They provide chemically and mechanically resistant, crack‑bridging linings for storage tanks, sumps, basins, trafficked floors and other liquid‑handling structures. Systems are selected by resin base (Vinyl‑Ester, Furan, Phenolic, Epoxy) according to process and exposure conditions.

HEGGEL® FRP 310
Fiber‑reinforced epoxy laminate for crack‑bridging protection on primed steel, concrete or HEGGEL acid protection membranes.

• Direct adhering primer on steel and concrete surfaces
• Excellent chemical resistance
• High temperature resistance up to +160°C (dry)

HEGGEL® FRP 311
Glass‑mat reinforced epoxy lining system for chemically resistant, liquid‑tight protection of concrete and steel; compatible with other HEGGEL coating and putty systems.

• High resistance to solvents, acids, alkalis, oils and fats
• Thermally resistant up to 70°C at the laminate surface
• Solvent‑free binder system
• Bridges cracks up to 0.4 mm

HEGGEL® FRP 320
Multi‑component phenolic laminate for crack‑bridging protection on prepared, primed steel or concrete and over compatible rubber linings.

• Temperature resistance up to 60°C on concrete and up to 90°C (dry) on steel, depending on chemicals
• Suitable for indoor and outdoor use
• Very good resistance to inorganic and organic acids, oils, greases, fuels and solvents
• Electrical conductivity achievable with HEGGEL Hybrid Fleece

HEGGEL® FRP 321
Glass‑mat reinforced phenolic lining (≈3 mm) offering chemical resistance and optional electrical conductivity when applied with hybrid mats; compatible with HEGGEL Pox coatings, sheets and rubber linings.

• Excellent resistance to acids and solvents
• High temperature resistance up to +90°C (dry)
• Electrically conductive option (with hybrid mat)

HEGGEL® FRP 333
Glass‑mat reinforced furan lining providing high chemical resistance for prepared steel and cementitious substrates and over compatible rubber linings.

• Temperature resistance up to 60°C on concrete and up to 100°C (dry) on steel, depending on chemicals
• Very high resistance to inorganic/organic acids and alkalis
• High resistance to greases, oils, fuels, solvents and hydrocarbons
• Suitable for indoor and outdoor applications
• 450 g/m² glass mat can replace 300 g/m² where required
• Electrically conductive version possible

HEGGEL® FRP 340
Bisphenol‑A epoxy vinyl ester laminate for broad resistance to acids, alkalis and solvents; system includes primer, laminate and top coat for tanks, vessels, sumps and containment areas.

• Good workability and air drying
• Temperature resistance on steel up to +100°C
• Excellent resistance to acids, alkalis, solvents and oxidizers
• Crack‑bridging capability
• Very good adhesion to concrete
• High mechanical strength and toughness
• High flexibility and extended shelf life for handling

HEGGEL® FRP 341
Glass‑mat reinforced epoxy vinyl ester lining for internals of tanks, scrubbers, sumps and wastewater units; suitable for marine environments.

• Lower viscosity for convenient application
• Temperature resistance on steel up to +100°C
• Excellent resistance to acids, alkalis, oxidizers and solvents
• Crack‑bridging properties
• Excellent adhesion to diverse substrates
• High tensile and flexural strength with good toughness
• Extended shelf life for handling and storage flexibility

HEGGEL® FRP 343
Vinyl‑ester based glass fiber reinforced coating designed for heavy‑duty floors and containment; crack‑bridging up to ≤ 0.4 mm and suitable for floors with pneumatic rubber, Vulkollan or polyamide tyres.

• Designed for heavy‑duty floor and containment applications
• Crack‑bridging up to ≤ 0.4 mm
• Compatible with pneumatic rubber, Vulkollan and polyamide tyre traffic

HEGGEL® FRP 345
Epoxy novolac vinyl ester system for chemically resistant protection of floors and walls under high thermal and mechanical stress; total layer thickness approx. 0.6–3.0 mm depending on system selection.

• Chemical‑resistant solution for heavily stressed floors and walls
• Layer thickness range approx. 0.6–3.0 mm depending on selected system

Technical specifications

• Resin bases: Epoxy (including Novolac), Vinyl‑Ester, Phenolic, Furan
• Substrates: primed steel, concrete, HEGGEL acid protection membranes, compatible rubber linings and HEGGEL coating systems
• Temperature resistance (typical): approx. 60–100°C on concrete/steel depending on product; specific dry ratings up to +160°C for certain products
• Crack‑bridging: many systems bridge up to 0.4 mm
• Chemical resistance: high to very high against acids, alkalis, solvents, oils, greases, fuels and many industrial media (product dependent)
• Electrical conductivity: possible using Hybrid Fleece / hybrid mats for specified products
• Glass mat reinforcement: various weights (e.g. 300 g/m², 450 g/m²) and combinations with fleece to meet mechanical and electrical requirements

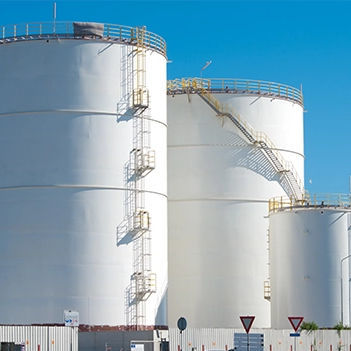

• Typical applications: storage tanks, vessels, sumps, collecting basins, trafficked floors, wastewater and flue gas desulfurization units, marine and exterior/interior liquid storage facilities
