Light measurement system Prinect

colorautomatic

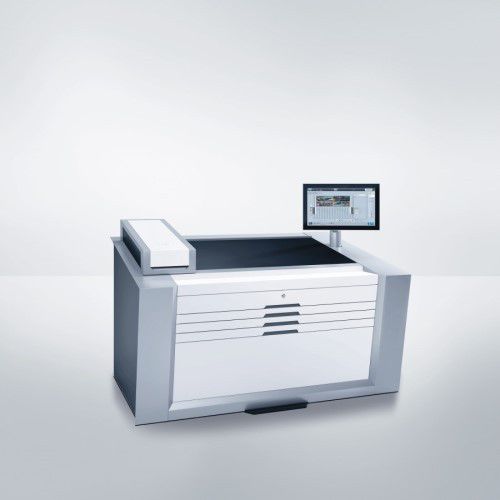

Prinect Easy Control is the ideal introduction to spectral measurement technology – simple to operate and easy removal of the measuring device. This means that the high-precision spectrophotometer is also available for work outside the press. Prinect Easy Control is also the most economical system in its class. Job and color information are stored together and easy to recall for reprints at any time. The system is integrated in the press control station to save space. The operator can carry out checks without leaving his work station, and concentrate on print quality at all times. The measuring speed of up to 135 mm/second (5.91 in/sec.) ensures continuous productivity: an A3 sheet takes only four seconds to measure. Prinect Easy Control: Integrated in the press control station Powered horizontal measuring device travel, manual vertical setting Sheet fixing with gripper magnets and rollers under the measuring device Highlights: Measuring speed up to 135 mm/second (5.91 in/sec.) Common storage of job and color information for faster inking-up on repeat jobs Automatic detection of the print control strip saves time and eliminates the need for manual assignment Free positioning of the control strip on the printed sheet (e.g. leading edge, center, trailing edge) for flexibility and material savings
