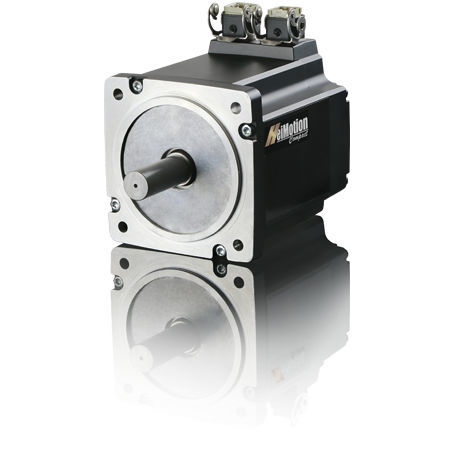

Brushless servomotor HMC13 series

DCcompactrobust

The HeiMotion Compact servo motor series is especially designed for the Asian region. This means that the connection technology complies with Asian standards and criteria such as performance gradations and cost advantages are geared to the Far Eastern market. Instead of connectors with plugs, more cost-effective cable connections are used and the selection of encoders is limited, which means that a higher number of units can be produced per production batch. The motors are available in the flange dimensions 60 mm, 80 mm and 130 mm available. However, the orientation towards the Asian market does not mean that HeiMotion Compact servo motors are not also in use worldwide. This is because our innovative modular configuration system, which gives us a wide range of options in the composition of the drive systems, means that the HMC motors can also be customized and adapted to meet specific requirements. The most important data of the HMC series: - Stall torque: 0.7 - 18.5 Nm - Rated speed: 2,000, 3,000 rpm - Rated torque: 0.6 - 14.4 Nm The features of the HMC series: • Compact design • Precision • Robustness • Excellent efficiency • Economically attractive Available in 4 different basic versions Flange size: : 130 x 130 mm DC bus voltage: : 320 / 560 V Feedback options: : Resolver (standard), SEK/SEL37 (HIPERFACE) Optional: : brake / feather key Connection options: : Standard connector on motor side (mating connector is not supplied in the standard version)
