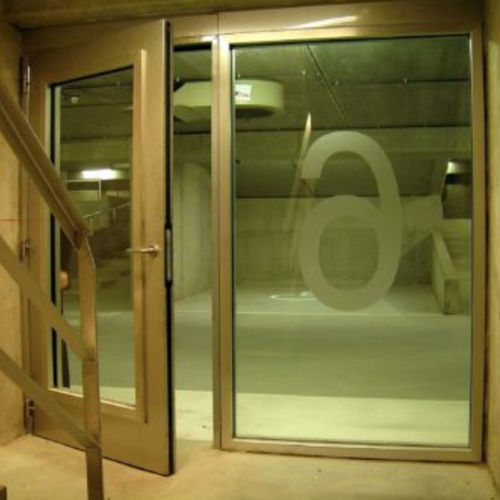

Swing door

steelgalvanised steelPVC

The double swingdoor has the same characteristics as the single door. Double swing doors can, of course, fill far bigger openings. They are also made to measure, but as with the single doors, standard dimension ranges (height and width) enable us to offer attractive prices. The table below, available for downloading, relates to “Type 1”, the most cost-effective solution, and the dimensional limits of the range of double doors. Arranging the order of the door leaf closure for the double door Double doors can be provided with a door closer on the service leaf or on each leaf. In the latter case, a closure selector is fitted to ensure that the leaves close in the right order (first the fixed leaf and then the mobile leaf) to avoid collisions or blockages. How far do the double door performance levels go? The performance levels on double hung doors can reach 180 min. for fire resistance (EN 1634-1 EI2) RC5 for burglary resistance (EN 1627-1630) 53 dB for soundproofing (EN ISO 717-1) Finishes and fittings Basic fittings Door frame and leaf finish Magnelis® Hot-dip galvanised ZM 250 steel (250g/m², 20µm thick). Hinges Two steel hinges, adjustable and replaceable Handles A set of two U-shaped aluminium handles Lock and cylinder Standard 1-point lock with standard cylinder Cylinder backplate In PVC, decorative (the cylinder is flush with the door leaf) Double door A manual locking mechanism in the fixed leaf operates as a locking point top and bottom Dimensions Always made to measure
