Bi-metal temperature switch TWR ss=eries

NONCthreaded

Overview

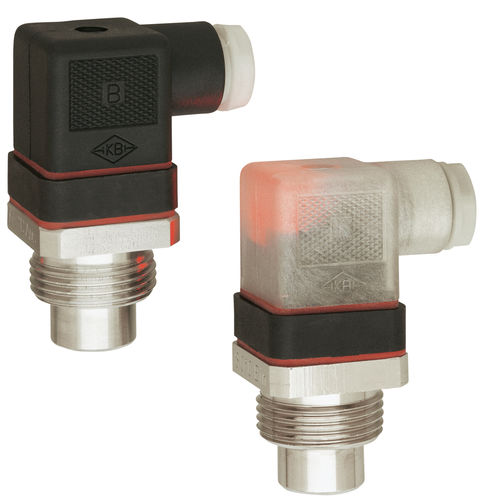

The KOBOLD temperature switches TWR use a bimetallic element with a snap action contact to monitor liquid temperatures in pipes and vessels. Units are available in brass (nickel plated) or stainless steel and are installed via a G ¾ screw-in thread into a welded socket. Switching points are fixed in 5 °C steps between 30 °C and 50 °C and in 10 °C steps between 50 °C and 120 °C. Contacts are available as N/C or N/O. The standard electrical connection is a plug (DIN 43 650); an optional pilot lamp can indicate switching status.

Highlights

• Easy mounting via G ¾ screw-in thread
• Position independent
• Materials: brass nickel plated or stainless steel
• Fixed switching point range: +30 °C … +120 °C
• Contact types: N/C or N/O

Applications
Monitoring of liquid temperatures in industrial piping and vessels (process control and safety applications).

Technical data
Switching point: fixed +30 … +120 °C (5 °C steps for 30–50 °C; 10 °C steps for 50–120 °C). Connection / Mounting: G ¾ male thread into welded socket. Materials: brass (nickel plated) or stainless steel. Electrical connection: plug DIN 43 650. Accuracy:

• 30 … 90 °C: ±5 °C
• 100 … 120 °C: ±7 °C

Hysteresis: max. 20 °C.

Characteristics / Technical specifications

• Type / Model: TWR
• Function: bimetal switch for monitoring liquid temperatures
• Switching point: +30 °C … +120 °C (5 °C / 10 °C steps)
• Contact types: N/C or N/O
• Materials: brass nickel plated or stainless steel
• Connection / Mounting: G ¾ screw-in thread into welded socket
• Electrical connection: plug DIN 43 650 (pilot lamp optionally integrable)
• Accuracy: 30–90 °C ±5 °C; 100–120 °C ±7 °C
• Hysteresis: max. 20 °C
• Application: monitoring of liquid temperatures in pipes and vessels
