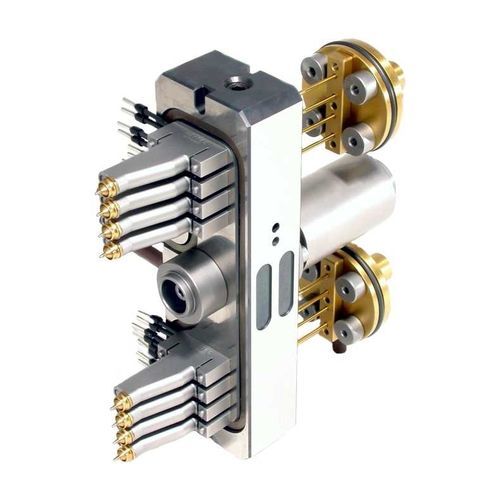

Valve gate system 64.08

Direct pin drive, alternatively hydraulic or pneumatic. With this design, one or multiple pins are combined in one drive piston which is inserted directly into the clamping plate. The drive medium is moved towards the pistons through holes in the plates. The valve gate piston drive is inexpensive, easy to install and low-maintenance; it is especially suitable for cascaded moulds or moulds with exposed pin positions.
