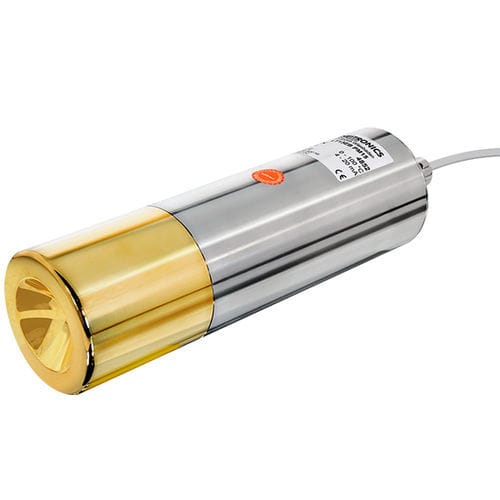

Low emissivity pyrometer LT13 EB serieswithout display°CK
Add to favorites
Compare this product
Characteristics
- Display
- without display
- Units of measurement
- °C, °F, K
- Communication
- RS485, 4-20 mA, RS-232, analog output, digital output
- Protection level
- IP65
- Configuration
- stationary, compact, built-in, in-line
- Applications
- industrial, for reflective metal, for surface temperature measurement, for quality control, for aluminum, for aluminum processing, for reflective materials
- Other characteristics
- stainless steel, precision, programmable, for low emissivity, non-contact
- Temperature
Max.: 200 °C
(392 °F)100 °C
(212 °F)Min.: 0 °C
(32 °F)- Resolution
0.2 °C
(32.36 °F)- Dial diameter
Max.: 63 mm
(2.5 in)63 mm
(2.5 in)Min.: 63 mm
(2.5 in)- Spectral range
Max.: 14 µm
Min.: 8 µm
- Response time
Max.: 10,000 ms
Min.: 30 ms
Description
A hard gold-plated parabolic mirror images the measuring spot onto itself. The radiation emitted by the shiny object is thus "captured". Multiple reflections result in a significantly higher radiance in this area than is emitted by the object surface. With the LT13 EB it is therefore possible to measure the temperature on shiny, highly reflective surfaces without contact.
Features:
- Measurement at very low emissivities (> 0.02)
- Highly reflective gold mirror
- 2 versions for 5 mm or 23 mm measuring distance
Note: only suitable for clean processes, e.g. battery production
