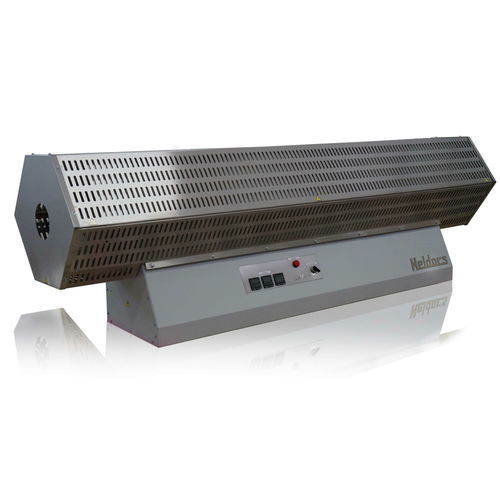

Thermal furnace TH1 series

tubulargasvacuum

Professional tube furnaces HELDORS TH1 stands out in the market with their reliability, because they developed to work in maximum temperature continuously. It also has esthetic and ergonomic design. Products made for various thermal process in temperature range from 50⁰C up to 1200⁰C in air conditions or with inertial gas (optional). TH1 is horizontal tube line with one zone control. Furnaces is equipped with double ceramic tube, what makes longer life time of heating elements, better temperature distribution and more convenient service. OPTIONS Additional ceramic tubes in various dimensions Split tube chamber• Vertical tube Tube rotation system (with angle) Quartz tubes Quartz systems (joints, bottles, customized systems) Overt-temperature protection Inertial gas connection Flow meter Extended working tube Vacuum connection (up to 10¯⁶mbar) Tube supports (for long additional tubes) Customized dimensions Insulation plugs Radiation shields (plugs for dust free applications) Ramp programmable PID controller Touch screen Temperature recorder Visual alarm for broken heating elements RS232 RS485 PC software BASIC MODEL Double ceramic tube (15, 25, 38, 50, 60, 75, 100 mm internal dimensions) Wire heating elements between ceramic tubes Stainless steel upper casing Powder painted control panel Stainless steel cover (protect from hot surfaces) Powder painted casing Lightweight insulation (low inertia) Solid state relay control PID two step temperature controller K type thermocouple Over heat protection
