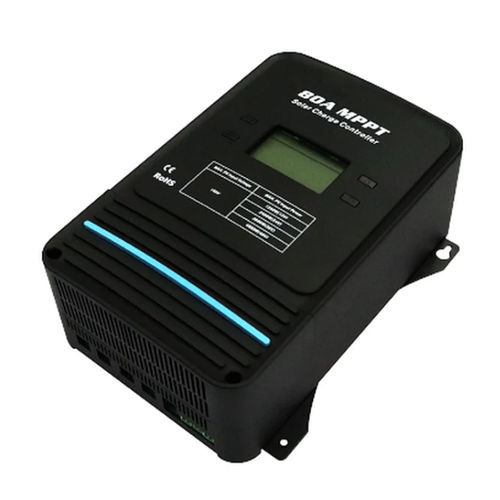

Battery charge controller M48 series

solarfor marine applicationsMPPT

3-stage charging optimizes battery performance. Suitable for battery types such as Lead-acid AGM/GEL/FLD & Lithium battery. The external port can be used by multiple devices in parallel（max 9 devices in parallel）. Supports RS485 communication with Modbus protocol, support customer customization protocol and communication media. Industrial grade design with full range of electronic protections, such as Controller Over-temperature, Environmental Over-temperature, Battery&PV Reverse, Battery&PV Over-voltage protection. 300 days max data logging ＜150Voc max PV input voltage Negative grounded design for RV use Inbuilt BT module for APP operation MPPT 80A max charge current Advanced Maximum Power Point Tracking (MPPT) Technology Fast MPPT start with ultra fast of sweeping of the entire V-I curve Smart MPPT algorithm ensures a better tracking in multiple power points High PV harvest performance in weak sunlight conditions Excellent peak efficiency exceeds 98% High Quality & Functions Aluminum casing for better cooling and charge function in high temperature Tempered glass cover, touch screen button for better operation Polyurethane filled inside for better cooling and waterproof Over rating electronic components to minimize the power loss from heating Full charge power output up to 45ºC Compensates battery charge voltages with use of temperature sensor LCD screen display Lead-acid AGM/GEL/Flooded & Lithium batteries supportable Reliable Electronic Protections Advanced protections for battery charge & discharge Over-heating protection by power derating if temperature is high
