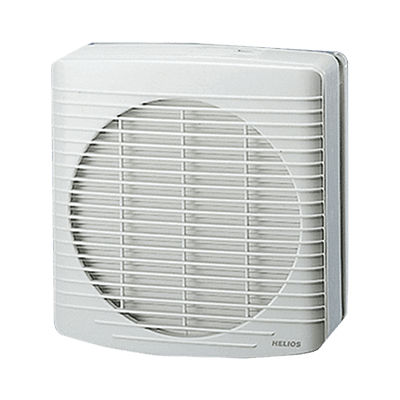

Wall-mounted fan GX 225
axialdust controlventilation

Wall-mounted fan - GX 225 - Helios Ventilation - axial / dust control / ventilation
Wall-mounted fan - GX 225 - Helios Ventilation - axial / dust control / ventilation
Wall-mounted fan - GX 225 - Helios Ventilation - axial / dust control / ventilation - image - 2
Wall-mounted fan - GX 225 - Helios Ventilation - axial / dust control / ventilation - image - 3
Wall-mounted fan - GX 225 - Helios Ventilation - axial / dust control / ventilation - image - 4
Wall-mounted fan - GX 225 - Helios Ventilation - axial / dust control / ventilation - image - 5
Wall-mounted fan - GX 225 - Helios Ventilation - axial / dust control / ventilation - image - 6
Add to favorites
Compare this product

Characteristics

Type
wall-mounted
Configuration
axial
Function
ventilation, dust control
Supply voltage
AC
Applications
motor, window
Other characteristics
shutter, flat
Air flow

670 m³/h
(23,660.827 ft³/h)

Diameter

225 mm
(8.858 in)

Rotational speed

1,250 rpm
(7,854 rad.min-1)

Description

Window fan with built-in electric shutter and outside rain repellent grille. Casing made from impact resistant polymers. Air tight shutter. Flat rain repellent grille on the extract opening. Axial impeller from polymers. Totally enclosed, AC condenser motor, stepless controllable. With maintenance-free, sealed for live ball bearings. Number of poles: - 2 Voltage: - 230 V , 1 ph , 50 Hz Rated current (FLC) uncontrolled: - 0.3 A Nominal power: - 45 W Max. air flow temperature: - 40 °C IP protection category: - 44 Insulation class: - B Weight: - 4,30 kg Wiring diagram no.: - 538
