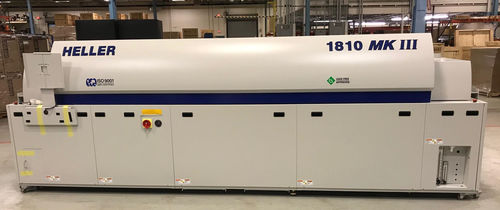

Reflow Oven 10 Zones -MK5 1810
10 Zone Reflow Oven with Static Pressure / Computer Fan Speed Control of Heater Module Blowers (Three Groups; Zones Top, Bottom & Reflow Zones)
Gen5 Waterless Cooling and Flux Separation System – Heated Cooling Module in 1st Cooling Zone for Controlling Cooling Slope – Enhanced Waterless Cooling Modules for Low Product Exit Temperature.
Complete Computer Control System including:
Flat Panel Color Monitor & Keyboard Support Arm
ECD CPK & SPC data and alarm logging with timed download or printout capability
5 Thermocouple “Real Time” profiling
Complete KIC & ECD Profiling & Storage Software including the following features:
Profile Storage/Overlay Software including the following features:
Profile Graph Storage of up to 500 graphs
Profile graph overlay of “benchmark” profile with current profile
Profile graph phase shifting to align two graphs
Moveable slope window providing average slope over given portion of graph
6 color graphics to distinguish between graphs
Benefits of the Mark V series SMT reflow oven system
Reflow Oven Specifications:
Make: Heller
Model: 1810 MKV
Vintage: 2014
Process Flow: Left to Right
Hours: 365 …Like New!
Software: Windows 7
2 Internal Cooling Modules with 30” of Cooling
20 Independent Temperature Controlled 350°C Balanced Flow “Lead Free” Heating Zones
Nitrogen On/Off Capability (Computer Controlled)
Oxygen PPM Monitoring System
Spike Zone Design for minimal liquidous time
