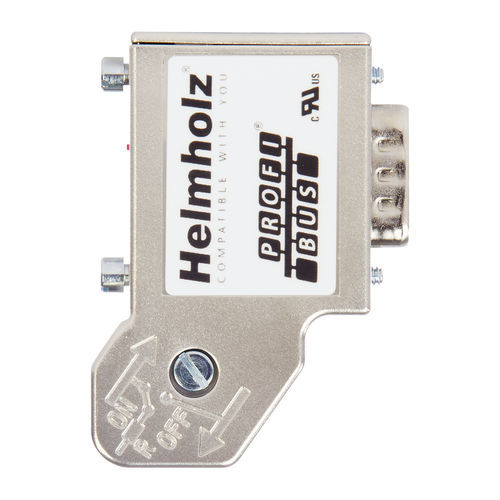

Data connector 700-972-0BA41D-subparallelscrew
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- D-sub
- Shape
- parallel
- Connection type
- screw
- Electrical characteristics
- EMC
- Product applications
- housing
- Other characteristics
- compact, PROFIBUS
- Data rate
12 b/s
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -25 °C
(-13 °F)
Description
It is quickly mounted and has integrated, connectable terminating resistors.
For improved EMC compatibility, the housing of the plug is metalized.
The PROFIBUS connector works in the extended ambient temperature range of -25 °C to +85 °C.
Metalized housing
No parts that can be lost
Integrated switchable terminating resistor
35° cable outlet
Proven screw terminal
The maximum ambient temperature for UL is +60 °C.
