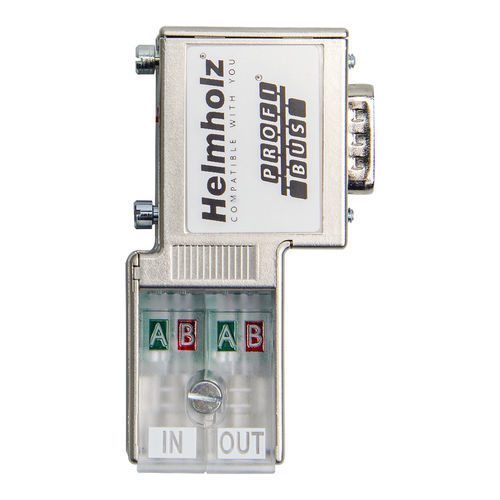

Data connector 700-972-0BA50controlIP20PROFIBUS
Add to favorites
Compare this product
Characteristics
- Type
- data
- Product applications
- control
- Protection class
- IP20
- Other characteristics
- PROFIBUS
- Primary current
Max.: 12.5 mA
Min.: 0 mA
- Voltage
Max.: 5.25 V
Min.: 4.75 V
- Data rate
Max.: 12 Mb/s
Min.: 0 Mb/s
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -25 °C
(-13 °F)
Description
With the aid of a visual connection control, it is also possible to check that the PROFIBUS cable is correctly connected after it is mounted.
The housing is metalized for improved electromagnetic compatibility.
The EasyConnect® connector works in the extended ambient temperature range of -25 °C to +85 °C.
Metalized housing
No parts that can be lost
Integrated switchable terminating resistor
90° cable outlet
Quick-connect technology EasyConnect®
Visual connection control
The PROFIBUS connectors are also available in packs of 10 or 50
The maximum ambient temperature for UL is +60 °C
