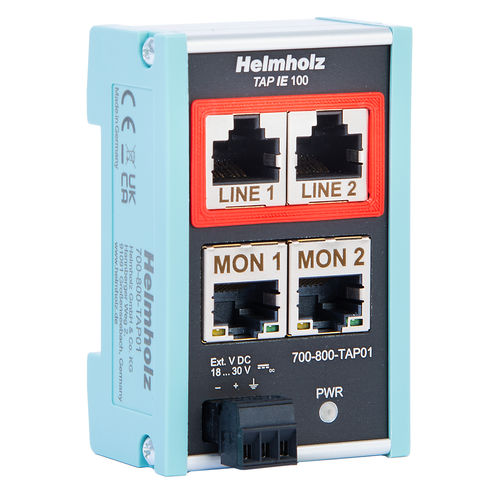

Ethernet/IP diagnostic device TAP IE 100

monitoring

The TAP IE 100 enables recording of Ethernet communications at 10 or 100 Mbps without retroactive effect. The Ethernet transmission via the Line RJ45 sockets is sent out on the two monitor sockets as a "copy". With a PC or other diagnostic device the Ethernet telegrams can be logged and analyzed, e.g. with "Wireshark". The practical flat design with the intelligent arrangement of the network connections saves space in the control cabinet. Non-reactive recording of Ethernet communication Secure and passive decoupling of telegrams Monitors all OSI layers starting from layer 2 and mirrors packets of all sizes and types and VLAN traffic For 10 or 100Mbit/s No influence on Ethernet transmission in case of power failure
