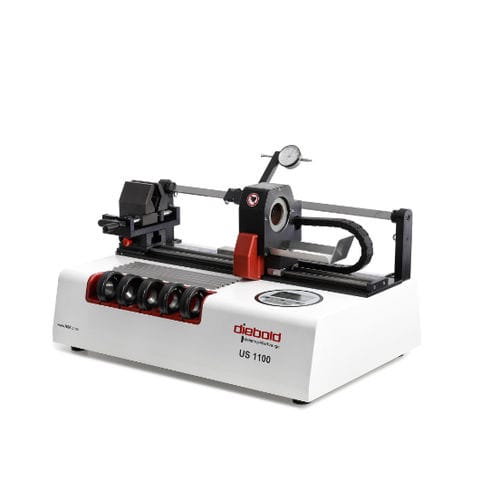

Cold shrink fit machine US 1100 HORIZONTAL

induction

Shrink range Ø 3 – 32 mm for carbide shanks and Ø 6 – 32 mm for HSS shanks. The optional coil with pyrometer technology allows automatic and direct temperature control of the Shrink Chuck during heating.The Shrink Chuck can no more be over-heated. The safe and fast shrinking process does not need a prior identification of the Shrink Chuck. • Changeable adapters HSK 25 to HSK 100 or SK/BT 30 to SK/BT 50 to hold the ShrinkFit tool holders in the shrink position • With the universal tool clamping adapter it is possible to clamp all taper sizes centric • Manual operation with one power button or automatic with parameters • Broken tool removal unit available • Installation of a length setting unit is possible • For cool down of the ShrinkFit holders we recommend to use our chiller unit FKS 04 S Shrink length: 500 mm Delivery includes: Shrink Unit with 5 interchangeable discs, set of gloves and basic coil or optional coil with pyrometer technology
