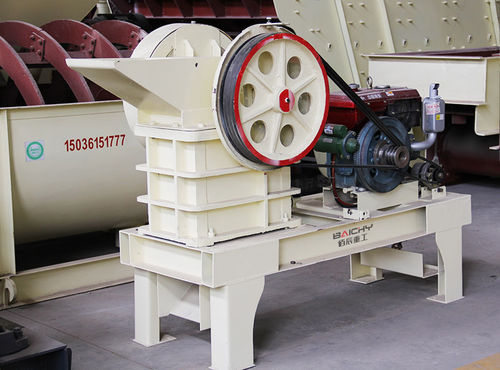

Jaw crusher PE series

mobilecoal

Small jaw crusher is kind of small scale stone crusher machine. It could be customized to portable or mobile type. Portable jaw crusher is popular especially when lack of electricity or need to move machines frequently. Application Small stone crusher is applied to relatively small feeding material granularity and relatively small discharging gate. It is widely used to fast crushing of aggregates, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, build Applicable materials: Stone crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate etc. Different final output size could meet your different needs. Deep crushing cavity to increase capacity and output of the feeding. Quality Assurance High manganese steel castings jaw plate can be reversed to extend life and save cost. Customized Scheme The discharging size of jaw crusher can be adjusted to meet the requirements of different users. High Yield Large crushing ratio, uniform products particle size. Deep crushing cavity to increase capacity and output of the feeding. Working principle When the small jaw crusher working, belt and belt pulley are driven by a motor. The movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring , then the end products come out from the crushing cavity.
