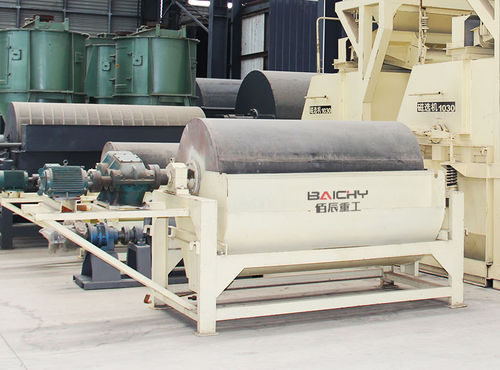

Magnetic separator CTB series

coalprocessiron

Magnetic separation is a process in which magnetically susceptible material is extracted from a mixture using a magnetic force. Application Magnetic Separator is designated for wet magnetic separating of material with granularity below 3mm,such as magnetite, pyrrhotine, roasted ore and washingtonite. Applicable materials: Stone crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate etc. Different final output size could meet your different needs Short magnetic circuit and little magnetic flux leakage. Quality Assurance Short magnetic circuit and little magnetic flux leakage. Customized Scheme Fine beneficiating results and simple structure and easy to maintain. High Yield High magnetic intensity and low energy consumption. Working principle Slurry enters chute through ore tank, and then gets into separating zone by waterpower. Minerals with strong magnetism is absorbed on the barrel’s surface under the force of magnetic field and get into the ore concentrate outlet along with the rotation of cylinder. After leaving the magnetic field, they flow into ore concentrate box by the action of gravity and flushing water. Gangue and ore with weak magnetism are discharged into a pipe in the opposite direction of cylinder rotation.
