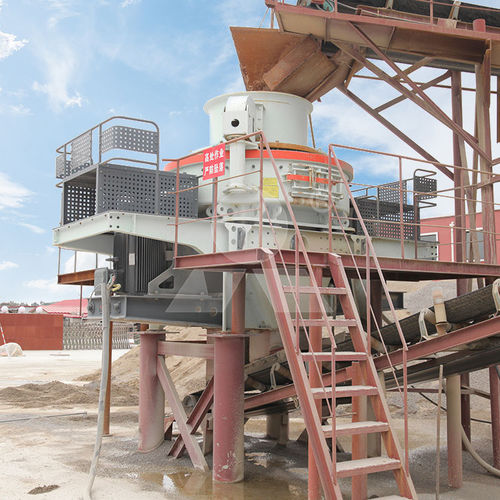

Vertical-shaft impact crusher VSI5X7615

stationaryhigh-capacitysecondary

Hydraulic cap opening device, Air self circulation system Adopting quality raw materials and advanced technologies, VSI Vertical Shaft Impact Crusher ensures high-quality and good abrasion performance. This machine switches the working principle “crushing between materials” to “crushing between materials and liners”, which can be used to make sand and shape stones. Applications: Mechanism sand, bituminous concrete, metal mine, aggregates shaping Working Principle 1. Center Feeding: Raw material falls down into feed hopper, then enters impellor through central entrance hole. It is accelerated in high-speed impellor, then is thrown out at speed of 60-75m/s. When hitting impact plate, it is crushed. Final products come downwards through outlet. 2. Ring Feeding: Raw material falls down into feed hopper, then through ring, it is divided into two parts by material-dividing plate. One enters into impellor through the center of material-dividing plate. The other falls down from outside of material-dividing plate. Material, which is thrown out by impellor at speed of 60-75m/s, hits material coming down from outside of material-dividing plate. In this way, material is crushed.
