Detection gas monitoring equipment

for process monitoringfor high-voltage measurementsmeasuring

Product overview

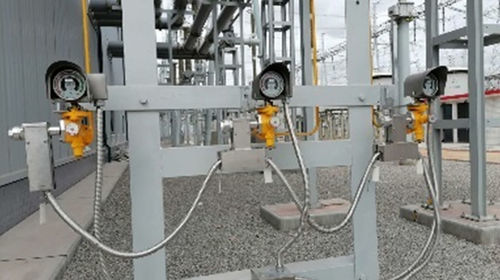

Composed of a measurement IED and SF6 gas condition transmitters, the system provides data acquisition, communication and storage capabilities along with flexible parameter configuration. It enables real-time online monitoring of SF6 gas compartment temperature, density, moisture content and pressure in in-service high-voltage switchgear. Applicable across voltage levels in power, metallurgy and railway industries.

Category

• Operation & inspection
• Online monitoring

Functions & features

• Monitoring system formed by a measurement IED and SF6 gas condition transmitters
• Supports data acquisition, communication and data storage
• Flexible parameter configuration and user-friendly operation
• Real-time online monitoring of SF6 gas compartment temperature, density, moisture (including humidity information) and pressure
• Suitable for SF6 gas online monitoring across voltage levels in power, metallurgy and railway sectors

Technical specifications

• Composition: Measurement IED + SF6 gas condition transmitters
• Main monitored parameters: gas temperature, gas density, moisture (including humidity information), pressure
• System capabilities: data acquisition, communication, data storage
• Configuration: supports flexible and convenient parameter settings
• Applications: online SF6 gas monitoring for high-voltage switchgear across voltage levels (power, metallurgy, railway)
