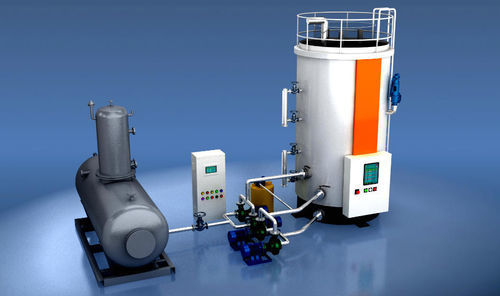

Hot water steam generator electricindustrialimmersed electrodes
Add to favorites
Compare this product
Characteristics
- Product
- hot water
- Power source
- electric
- Other characteristics
- industrial, high-voltage, immersed electrodes
- Power
60,000,000 W
(204,728,400 BTU/h)- Steam production
Max.: 500,000 kg/h
(1,102,311.31 lb/h)Min.: 0 kg/h
(0 lb/h)
Description
Overview
Our electrode boilers (6–22 kV) are offered in hot water and steam series. Based on Norwegian Palatt electrode boiler technology, they deliver fast start/response, five-level safety protection, reliable operation, maintenance-free core components, low maintenance costs, long service life, single-unit output up to 60 MW and thermal efficiency up to 99.5%. They support stepless load regulation, remote interactive control and unmanned intelligent operation, and are among the most advanced electrode boiler technologies applied for grid frequency regulation and ancillary services.
Category
Product series
Main applications
Product features
Technical specifications
Our electrode boilers (6–22 kV) are offered in hot water and steam series. Based on Norwegian Palatt electrode boiler technology, they deliver fast start/response, five-level safety protection, reliable operation, maintenance-free core components, low maintenance costs, long service life, single-unit output up to 60 MW and thermal efficiency up to 99.5%. They support stepless load regulation, remote interactive control and unmanned intelligent operation, and are among the most advanced electrode boiler technologies applied for grid frequency regulation and ancillary services.
Category
- Electrode boiler systems
Product series
- Hot water series
- Steam series
Main applications
- Flexibility retrofit of thermal power plants (major generating groups)
- Startup boiler for thermal and nuclear plants
- Integration with renewable energy for district heating and heat absorption
- Industrial steam electrification: pharmaceuticals, food processing, distilleries, pulp & paper and industrial parks
- District heating for towns, commercial buildings, schools, hospitals and office complexes
Product features
- Operating voltage: 6–22 kV
- Based on Norwegian Palatt electrode boiler technology
- Two main series: hot water and steam
- Fast start and response
- Five-level safety protection for reliable operation
- Maintenance-free core components and low upkeep cost
- Long service life
- Single-unit maximum power up to 60 MW
- Thermal efficiency up to 99.5%
- Stepless load regulation
- Supports remote interactive control and unmanned intelligent operation
- Suitable for grid frequency regulation and providing ancillary services
Technical specifications
- Voltage range: 6–22 kV
- Series: hot water series, steam series
- Maximum single-unit output: 60 MW
- Thermal efficiency: up to 99.5%
- Control: supports remote interactive control and unmanned operation
- Regulation: stepless load regulation
- Safety: five-level safety protection design
- Maintenance: maintenance-free core components, low maintenance cost
