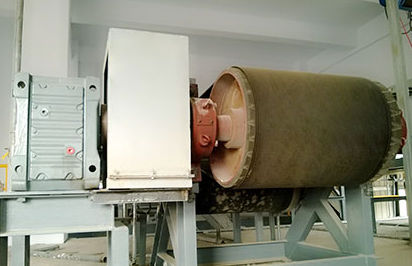

Roller pulley DTII（A）

beltbelt tensionfor conveyor line shafts

Conveyor Pulley Technological Standard: DTII（A） Pulley Diameter: 250/315/400/500/630/800/1000/1250mm Pulley Width: 600/750/950/1150/1400/1600mm Pulley Shell Material: Q235A Shaft Material: 45 # steel Pulley Surface Type: Smooth surface,rubber coated,rubber casted Introduction Belt conveyor pulley is a mechanical device which can guides the belt running, changes the belt direction and tensions the belt etc. They are dimensioned according to the characteristics of each conveyor and the position they occupy in a belt conveyor, the pulleys must withstand the forces imposed by both belt tension and conveyed load. Because rubber lagging can prevents belt slippage and increases the drive traction of the pulley, pulley with it could meet the requirements of different working conditions. Advantages and Features 1.Advanced welding capability ensure excellent quality of conveyor pulley. 2.Shell cylinders are rolled from the highest quality flat plate and longitudinally seam welded with a prepared full penetration butt weld. 3.Hub and end disc can be welded together or forged as one-piece depending on different types of pulley. 4.Pulley shells are finish machined and can be rubber lagged according to your requirements. 5.The dimension and tolerance of the pulleys also can be custom-made according to the drawing provided by you. 6.Dynamic balancing grade is very common for our engineered pulleys. No balance weight outside the end disc is available upon request. 7.With different sizes and lagging types available for you.
