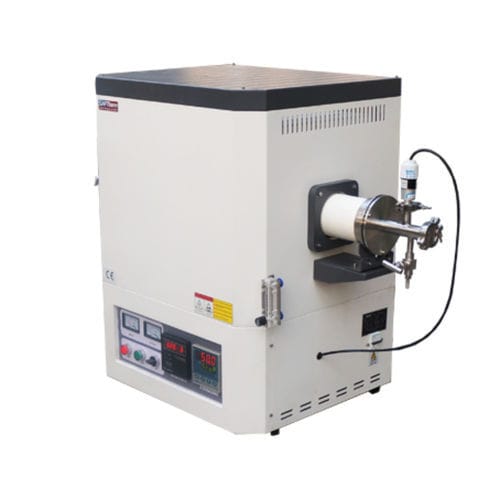

Tubular furnace STG-100-17

sinteringheat treatmentelectric resistance

1700℃ single-zone tube furnace is used in sintering and high temperature heat treatment of metal materials, ceramic materials, nano materials, semiconductor materials, powder metallurgy and other new materials in colleges and universities, scientific research institutes, factories and enterprises, petrochemical, aerospace and other industries. Features Furnace shell The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low Horizontal use mode, easy to operate Refractory material Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption Heating system The high-quality Mosi2 heating element is safely and firmly installed on both sides of the furnace, and is heated by free heat radiation in the furnace cavity, which is energy-saving and efficient, and has a long service life Heating on both sides (left and right sides), so as to achieve good uniformity in the furnace Temperature Control Panel PID and SSR control mode, precise temperature control International standardized B-type Ni - Cr silicon thermocouple, temperature range 0-1800°C, long service life Equipped with heating indicator light and over-temperature alarm buzzer Program Controller Advanced controllers that meet complex process requirements Simple and direct operation, flexible programming Programmable 32 program segments Over temperature and fault alarm,
