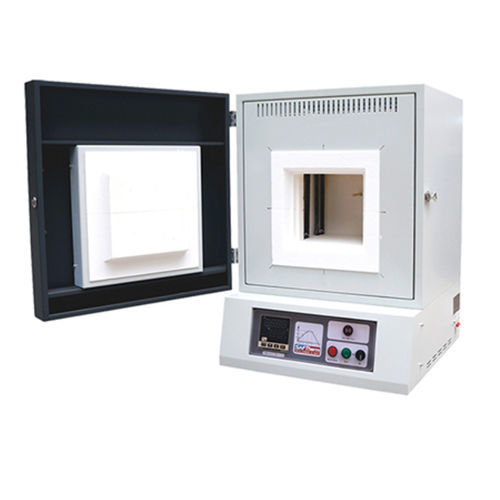

Muffle furnace STM-12-14
sinteringheat treatmentthermal

muffle furnace
muffle furnace
muffle furnace
muffle furnace
muffle furnace
muffle furnace
Add to favorites
Compare this product


heat treatment, sintering, thermal
Other characteristics
horizontal, low energy consumption
Maximum temperature

1,400 °C
(2,552 °F)


200 mm
(7.87 in)


200 mm
(7.87 in)


300 mm
(11.81 in)


1400℃ muffle furnace (box-type resistance furnace) is used in the sintering and sintering of new materials such as metal materials, ceramic materials, nano-materials, semiconductor materials, etc. High temperature heat treatment. Features Furnace Shell The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion. Strong double-layer metal frame shell structure, low furnace surface temperature. Side-opening furnace door structure, the furnace door opens to the right, easy to operate. Refractory Material Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption. Heating System The high-quality SIC heating element is safely and firmly installed on both sides of the furnace, and is heated by free heat radiation in the furnace cavity, which is energy-saving and efficient, and has a long service life Heating on both sides (left and right sides), so as to achieve good uniformity in the furnace The silicon carbide bottom plate covers and protects the bottom heating element, which has high mechanical strength, good thermal conductivity, and provides horizontal load bearing Temperature Control Panel PID and SSR control mode, precise temperature control Internationally standardized S-type platinum-rhodium thermocouple, with a temperature measurement range of 0-1600℃ and a long service life The furnace door is equipped with a door-opening power-off safety protection switch Program Controller 1. Advanced controllers that meet complex process requirements
