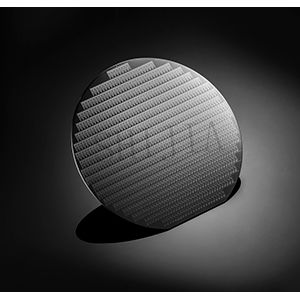

Silicon wafer 40/48CH AWG

40/48CH AWG Wafer & Chip Category：WDM Features：High channel port 、 Low insertion loss、 Low polarization dependent loss Applications： DWDM system 、 Metropolitan area network 、 Toll backbone network Description: Arrayed waveguide grating (AWG) is a device which can separate or combine signals with different wavelengths. It’s capable of multiplexing a large number of wavelengths into a single optical fiber, thereby increases the transmission capacity of optical networks considerably. AWG offers high wavelength selectivity, low insertion loss, small size. It’s commonly used as optical (de) multiplexers in DWDM system, ROADM, wavelength routing. Features: ● High channel port ● Low insertion loss ● Low polarization dependent loss ● High isolation ● Accord with Telcordia 1209/1221 ● RoHS compliance ● MUX/DEMUX Applications: ● DWDM system ● Metropolitan area network ● Toll backbone network ● ROADM ● Wavelength routing Types: 40/48 channel Flat-top, Gaussian
