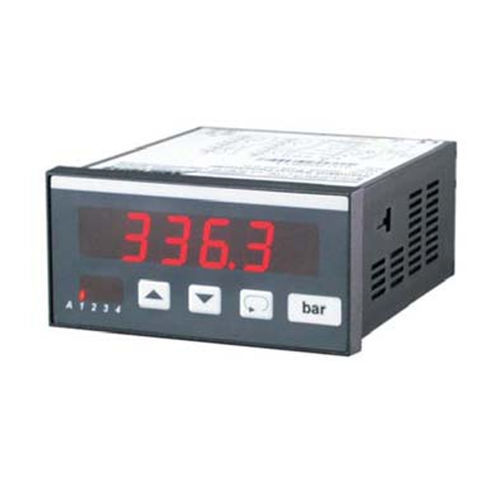

LED display DSA 9648

compact4-digitfor tank level measurement

for standardsignals 0/4…20 mA or 0…10 V indicating range und decimal point free programmable optional with max. 4 outputs, spdt relays or transistor led-display, 14,2 mm displayrange ± 9999(0) digits Description The digital display for signal-input DSA 9648 for panel-installation has been designed for standard signals 0/4…20 mA or 0…+10 V DC. The device offers an integrated transmitter supply for direct connection of 2- an 3 wire transmitters for e.g. pressure or temperature. The connection of potentiometers is possible as well. Indicating range and decimal point are free programmable in the range of ± 99990 (fixed zero selected).
