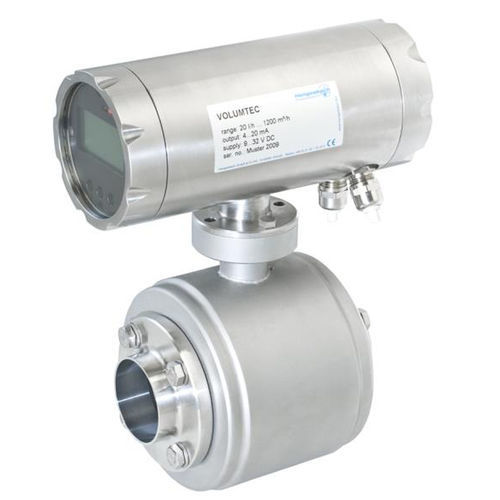

Magnetic-inductive flow meter VOLUMTECfor waterDN50 - 2"DN150 - 6"
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic-inductive
- Fluid
- for water
- Pipe diameter
- DN50 - 2", DN150 - 6"
- Installation
- flange
- Material
- stainless steel
- Communication
- 4-20 mA, analog output
- Protection level
- IP67
- Volumetric flow rate
Max.: 640,000 l/h
(169,070.1 us gal/h)Min.: 20 l/h
(5.3 us gal/h)- Process temperature
Max.: 120 °C
(248 °F)Min.: 0 °C
(32 °F)- Process pressure
Max.: 11 bar
(159.54 psi)Min.: 0.1 bar
(1.45 psi)- Precision
0.25 %
Description
Magnetic-inductive flow meter VOLUMTEC
Construction according to hygienic design standards, all
Measurement in both flow directions
Adjustability of the illuminated LC-Display
Self-monitoring and, if necessary, automatically readjusting electronics
Process sonnection: aseptic-flange with modular connection system for pipe adapters
