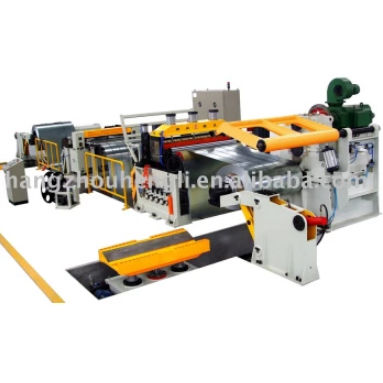

Metal strip slitting line HL-ZJ1250-90

coil-fed

HL-ZJ1250-90A slitting line For accurately slitting silicon-steel, strip steel and aluminum strip. German Siemens PLC control, Japanese YUKEN brand hydraulic components, Carbide knives. 1) Slitting thickness0.2-0.5mm 2) Max slitting width1250mm 3) Max uncoiling weight10T 4) Uncoiling O.D.1400mm 5) Uncoiling I.D.385-450mm / 480-520mm 6) Slitter mandrel diameter120mm 7) Slitting quantity15 strips 8) Slitting width≥71mm 9) Recoiling weight≤10T 10) Recoiling I.D.508mm 11) Slitting parallel tolerance0.05mm/m 12) Burr≤0.02mm 13) Slitting width tolerance0.05mm 14) Speed regulation methodDC, frequency control 15) Speed10-90m/min 16) Total consumption90Kw 17) Land occupation16×7m 18) Other performanceAll hydraulic driven, Proper circle recoiling, Pneumatic-expansion type strip tightener, With high-precision knife grinder, Side collector. 19) Unique designTouch screen operation, Siemens PLC control, Whole ling automatic running, On-line adjust slitting width, Adjust knife without removing shaft, On-line grinding.
