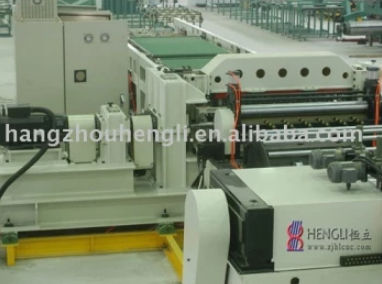

Die cutting line HL1200BS3Afor metalsheetcoil
Add to favorites
Compare this product
Characteristics
- Technology
- die
- Material
- for metal
- Product handled
- sheet, coil
- Control type
- with digital assistance
- Associated function
- stacking, straightening
- Applications
- for industrial applications
- Other characteristics
- electric, flying
- Cutting speed
Min.: 0 mm/min
(0 in/s)Max.: 60,000 mm/min
(39.37 in/s)
Description
HL1200BS3A digital-controlled scroll cutting device(Flying line)
For uncoiling, straightening, high-precise scroll cutting and stacking tinplate or aluminum. It is an important device for can-making or metal-printing companies to reduce tinplate loss and producing cost.
The electric control components use whole set of Mitsubishi control system.
Tinplate, Blackplate, TFS and Aluminum in tempers normally associated with standard can making material
Straight die / Scroll die
Feed-to-stop
1) Sheet width range500-1200mm
2) Sheet thickness range0.125-0.525mm
3) Sheet length range500-1200mm
4) Max coil weight12 T
5) Nominal coil I.D.420mm
6) Mandrel expansion range400-445mm
7) Coil O.D.915-1800mm
8) Max line speed60m/min
9) Max cutting strokes70 SPM
10) Max bundle weight2100kg
11) Max bundle height460mm(Including stander)
12) Length tolerance range≤±0.15mm
13) Diagonal tolerance range≤±0.18/1000mm
14) Power consumptionabout 43kw
15) Air consumptionabout 1m3/min
