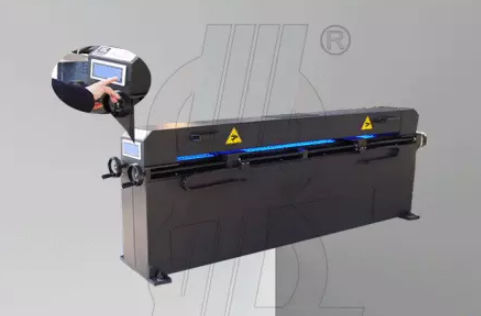

LCD display pinhole detector PHD1250 series

High sensitivity. Pinhole as small as Φ0.018mm /Φ0.013mm can be precisely found out. High luminance light source. Use light source with specific optical characteristics to ensure the detector to be sensitive and reliable. Automatic side follower assures a minimum detecting blind area. Operate by touch screen. Humanized interface is easy to understand. Multiple protection and alarm, makes operation more relieved. On-line detecting, max speed up to 1500m/min. Compact structure，takes minimum space. 1）Detecting material：opaque plate such as steel, aluminum, copper, etc 2）Detecting width：300-1250mm 3）Detecting thickness：≤1.2mm 4）Detecting sensitivity：Φ0.018mm /Φ0.013mm 5）Speed：≤1500m/min 6）Power：AC220V±22V 50Hz±1Hz 7）Consumption：≤500W 8）Temperature：10℃-40℃ 9）Relative humidity：10%-80%
