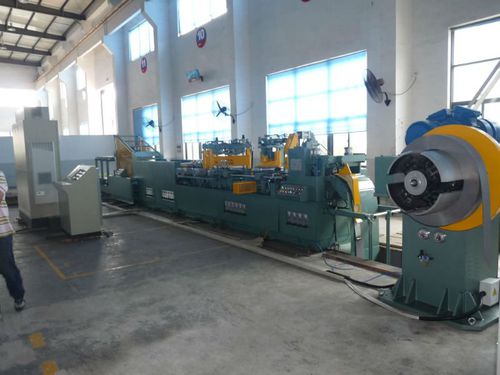

Straightening cut-to-length cutting line HL-HJ seriesfor metalcoilsheet
Add to favorites
Compare this product
Characteristics
- Material
- for metal
- Product handled
- coil, sheet
- Associated function
- straightening
- Applications
- for industrial applications
- Cutting speed
150,000 mm/min
(98.425 in/s)
Description
HL-HJ400 silicon-steel cross cutting line
1. Max capacity of each uncoiler reel1.2T
2. Coil I.D.500±10mm
3. Shearing width40-440mm
Should conform to the length-width rate of the sheet drawing
4. Shearing length400-2500mm
5. Shearing thickness0.23-0.35mm
6. Shearing tolerance±0.2mm
7. Shearing angular tolerance±0.025°
9. Life of straight cutter1,000,000 cuts before grinding
10. Burr in cutter life≤0.02mm
11. Power consumption30Kw
12. Air consumption3m3/min
13. Weightabout 15T
