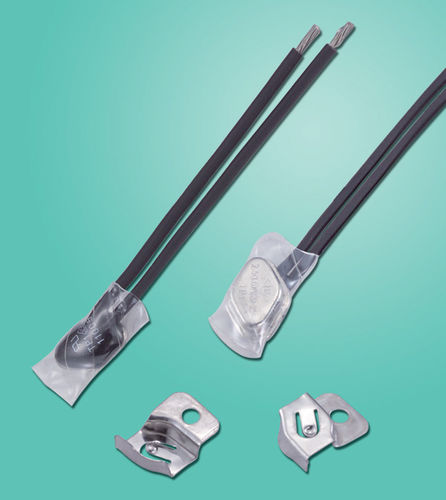

Miniature thermal protector Power-off Manual Reset MTP1 Thermal Protector

stainless steel

HXPEEs MTP1 Delay Reset Thermostat Product advantages: *Miniature size: L13.4*W9.0*H5.2 mm, wire length = 60mm *Manual power-off reset function to obtain utility model patent certificate *Diamond structure, small volume *With power-off protection, delay protection function *More reliable safety performance *More suitable for abnormal protection of the motor Product Features: MTP1 is another high-end thermal protector that develops from the TP1 series of thermal protectors. It adds a heating element to the TP1 series, so that the thermal protector is kept disconnected by the heating characteristic of the PTC after disconnecting. The thermal protector will only cool down and reset after the device is completely powered off. Its power-off protection and delay protection function can safely protect the equipment and personal safety. TECHNICAL PARAMETERS: *It also features a 50/60-Hz, 250-V AC rated voltage value. *A 2.5-A (1.6)/10-A (6.3) nominal rate (COSФ = 1.0 (0.6)). *And rated opening temperature levels ranging from 60℃ 160℃. *It is with metal housing and epoxy sealing.
