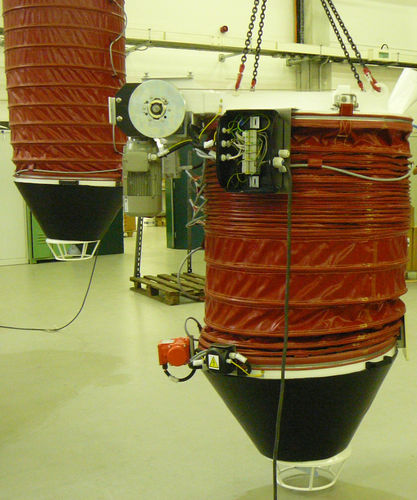

Telescopic loading spout NZU400E

Telescopic spouts type NZU400E are used for dust free loading of dry, dusty bulk solids into enclosed trailers and railcars. OPERATIONAL QUALITIES max. loading rate up to 300-350 m3/h particle size 0-40 mm connection flange DN 400 pipe 125 mm for the connection to the external filtration standard operational temperature -20 °C/+80 °C motor drive 0.75 kW loading conduit consisting of internal conical cones and external bellows DESIGN electric winch with limit switch rope switch level sensor - rotary type sealing cone for the perfect seal on the trailer / railcar hatch closure cone to prevent any spillage of dust when the loading spout is being raised Additional accessories electric control box pendant control with the cable wireless remote control vibration unit shut off valves (manual, electro, pneumatic) design for ATEX design for non-standard temperature (-40 °C/+150 °C)
