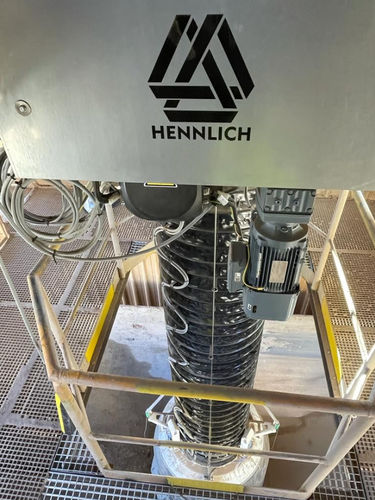

Truck loading spout NZK300E

opentelescopic

Telescopic spouts type NZK300E are used for dust free loading of dry, dusty bulk solids into enclosed and open trucks, trailers and railcars. OPERATIONAL QUALITIES max. loading rate up to 250 m3/h particle size 0-40 mm connection flange DN 300 dedusting flange DN 125 for connection to external filtration standard operational temperature -20 °C/+80 °C motor drive 0.55 kW loading conduit consisting of internal conical cones and external bellows DESIGN electric winch with limit switch rope switch level sensor - rotary / vibrating / capacitance type sealing cone for the perfect seal on the trailer / railcar hatch breaking cone to protect the level switch rubber skirt for the open loading (operated manually or electrically) Additional accessories electric control box pendant control with the cable wireless remote control vibration unit shut off valves (manual, electro, pneumatic) design for ATEX design for non-standard temperature (-40 °C/+150 °C)
