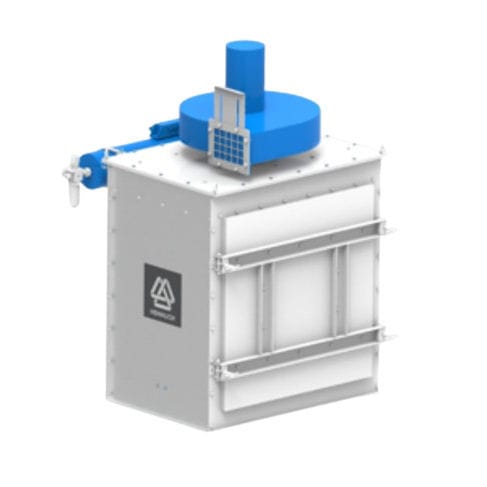

Filter dust collector Jet-S

automatic

Sinter-plates filters Lamel Jet-S are equipped with automatic regeneration using compressed air. Dust collector Lamel Jet-S is equipped with filter elements made of sintered materials characterized by a long service life of over 80,000 operating hours. Suitable for extracting dust from conveyor transfer points, silos, and hoppers during the filling of bulk materials. TECHNICAL SPECIFICATIONS capacity: 500–5,000 m³/h filter area: 8.3–85 m² residual dust concentration at the outlet: <1 mg/Nm³ standard operating temperature: -30°C to +70°C compressed air: 6 bar, -40°C; consumption: 2–15 Nm³/h pressure drop: 1,000–2,000 Pa, depending on operation DESIGN Robust bolted or welded sheet metal housing Filtered air exits through an opening in the filter’s clean chamber via a fan into the ambient environment Filter media: Delta2 sinter-plates, lengths 500, 750, and 1500 mm Regeneration of the filter surface is ensured by automatic and regular flushing via the JET-PULS system; compressed air connection: G ½” internal thread Pneumatic and safety valves, pressure regulator with pressure gauge ADVANTAGES Durable construction Integrated automatic flushing system for sinter-plates Excellent access to individual filter unit components from the side of the unit housing Easy replacement of sinter-plates High dust separation efficiency, sinter-plates service life of more than 10 years OPTIONAL ACCESSORIES Electrical control panel including a frequency converter Design for explosive environments Design for coastal environments Non-standard operating temperature range: -40 °C to +100 °C Design for the food and chemical industries
