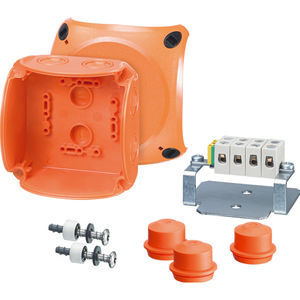

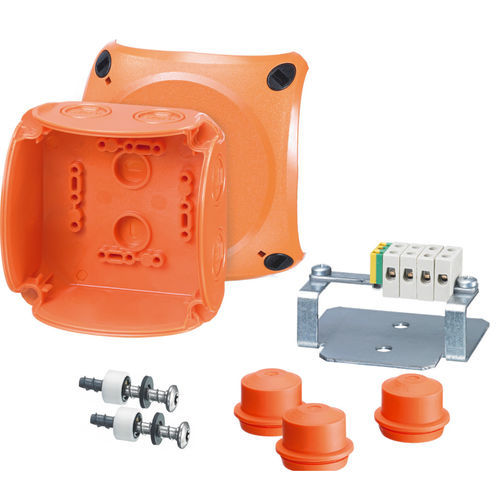

Wall-mounted junction box FK 0402

halogen-freeIECceramic

With terminals made from ceramic with resistance to high temperatures With metric knockouts Rated insulation voltage: Ui = 400 V Rated current: In = 32 A Functional integrity: E30, E90 Approved cable manufacturers: Dätwyler, Eupen Insulation integrity: PH120 Insulation integrity in accordance with BS EN 50200 in connection with insulation retaining cables Number of poles: 5 Number of clamping units per pole: 2 Connection type: Screw connection Ferrule required for flexible conductors: No Dismantling length: 6 mm Tightening torque of the terminal: 0.5 Nm Type of lid fastening: Quick locking: Opening and closing by quarter turn, locked position well visible (open - locked) Delivered accessories: Screw anchor IP degree of protection: IP66 Impact strength: IK09 Sealable without accessories: Yes Substrate wall mounting: Concrete C20/C25, Solid lime sandstone KSV 12, Brick MZ 12, Clinker KS 12 Application area: Indoor installation Maximum ambient temperature 24 h: 35 °C Ambient temperature: -25 °C up to +40 °C Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C Material: Polycarbonate Halogen-free: Yes Silicone-free: Yes Colour: Orange, similar to RAL 2003 conforming to the standards: DIN EN 60670-1/-22, IEC 60670-1/-22
